PP Mop Bucket Injection Mould

As the professional manufacture, we would like to provide you high quality PP Mop Bucket Injection Mould. And we will offer you the best after-sale service and timely delivery.We are a professional China PP Mop Bucket Injection Mould manufacturer, if you want to know more, you can contact us.
Every family must be buy mop bucket from supermarket to clean our floor. Different mop bucket type should make different injection mop mould, so if you had new idea of mop bucket, we could develop the mould for you.

Send Inquiry

Product Description

As the professional manufacture, we would like to provide you high quality PP Mop Bucket Injection Mould. And we will offer you the best after-sale service and timely delivery.PP Mop Bucket Injection Mould

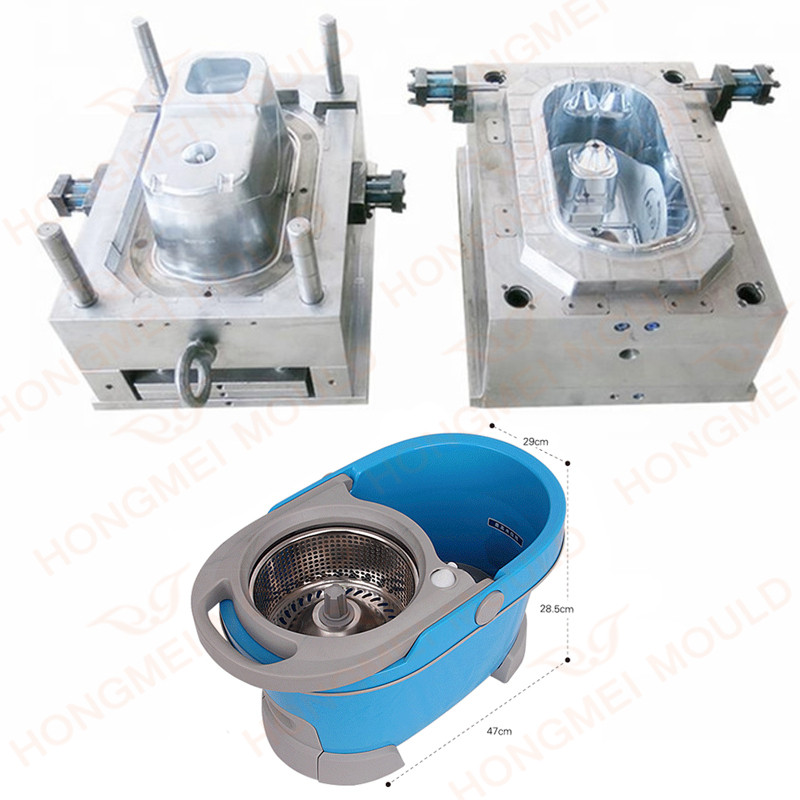

Bucket size: 475*300*275mm

Bucket weight: 1295g

Mold steel: 718H

Mold base: 45#

Lead time: 60 days

There is a total of 6 molds consists of this mop bucket

Pay attention to mold design

Plastic mop mold is not complex, so we design this mold is easy, but there are also have some tips we should take care.

At the beginning of the design, the mold opening direction and parting line must be determined first to ensure that the core-pulling slider mechanism is minimized and the effect of the parting line on the appearance is eliminated.

1. After the Plastic mop mold opening direction is determined, the product's ribs, buckles, protrusions and other structures should be designed to be consistent with the mold opening direction as much as possible to avoid core pulling, reducing seam lines and prolonging the life of the mold.

2. After the mold opening direction is determined, an appropriate parting line can be selected to avoid undercutting in the mold opening direction to improve the appearance and performance.

Mold material for plastic mop bucket molds

* Abrasion Resistance

Consider how long a mop bucket mold will last or if parts will accurately maintain their dimensions depending on production quantity.


Consider how much a mold should be polished for the desired part finish.

* Machinability

Use a solid material that can process mold or parts well.

* Heat Treatability

Use a material that can be processed evenly by heat treatment.

* Durability

Use a material that is durable against pulling stress, compression stress, or bend stress during the molding process.

* Heat Conductivity

Use a material whose temperature can be easily controlled while cooling the mold.

Delivery / Cost

Use a low-cost material that is easy to get in the market as well as delivered securely and immediately.

How to test the PP Mop Bucket Injection Mould?

1. Preparation

* Prepare the plastic mop mold

We need to check the mold before assembling it into the injection machine. Mold needs clean carefully, assembly status. Does each party have a crack, bite? Do we assemble an ejector pin or angular core pin mistake?

* Prepare plastic material

We need dry material to remove moisture. Dry time is different for each material.

* You need to calculate material weight following the quantity of the product.

* Prepare cooling channel, jig, insert.

2. Set up

* Assemble the plastic mop mold into the injection machine, cooling system, set temperature for the core plate and cavity plate. Then, configure the ejection system of the mold, mold opening distance in the injection machine.

* Prepare working area, worker, equipment, robot to do injection molding process automatically.

* Connect resin from dry system to feeder hopper of the injection machine.

* Remove old resin in the nozzle.

*Setup injection condition follows the working manually.

3. Plastic injection molding

* Clamping process

* Injection process

* Cooling process

* Plasticizing resin

* Mold opening and remove the product

* Checking the samples

About Hongmei Mould Company

Hongmei Mould knowledge and experience to share and discuss with customers, puts forward technology forward ideas, participates in customer product design, we will timely pass on product structure design, product mold manufacturability, mold drawings and 3D to customers, give customers a direct view, inform customers about product design opinions, mold manufacturing ideas, and shoulder to shoulder with customers to avoid development risks.
In many stages of project development, project personnel and technical designers discuss design, development and manufacturing in strict accordance with project management methods, in order to provide customers with the most perfect solutions and ensure that the quality of project development exceeds customer requirements.

Hongmei Mould Plastic will provide customer flow analysis, and use simulation software to verify the basic details of filling process, dissolution wiring, deformation and other die design. These characteristics will define the high quality of the die to ensure the accuracy of the initial stage of the project, so as to ensure the success at T1.
We provide a full range of processing technology, up to five axis.
The software is suitable for all 2D, 3D and five axis programming.
The machine is equipped with automatic tool changer and laser calibration tool.
The high-speed machining center is equipped with automatic detection function of workpiece off the machine.
