Plastic Washing Machine Parts Injection Mould

As the professional manufacture, we would like to provide you high quality Plastic Washing Machine Parts Injection Mould. And we will offer you the best after-sale service and timely delivery.Hongmei mould company had made many various size of Plastic Washing Machine Parts Injection Mould, could wash weight 7.5kg,8kg,9kg and 10kg. Washing machine could use in many place, such as school laundry room, hospital laundry room and at home. Hongmei mould company could produce washing machine parts mould nearly 30-50 sets each month.

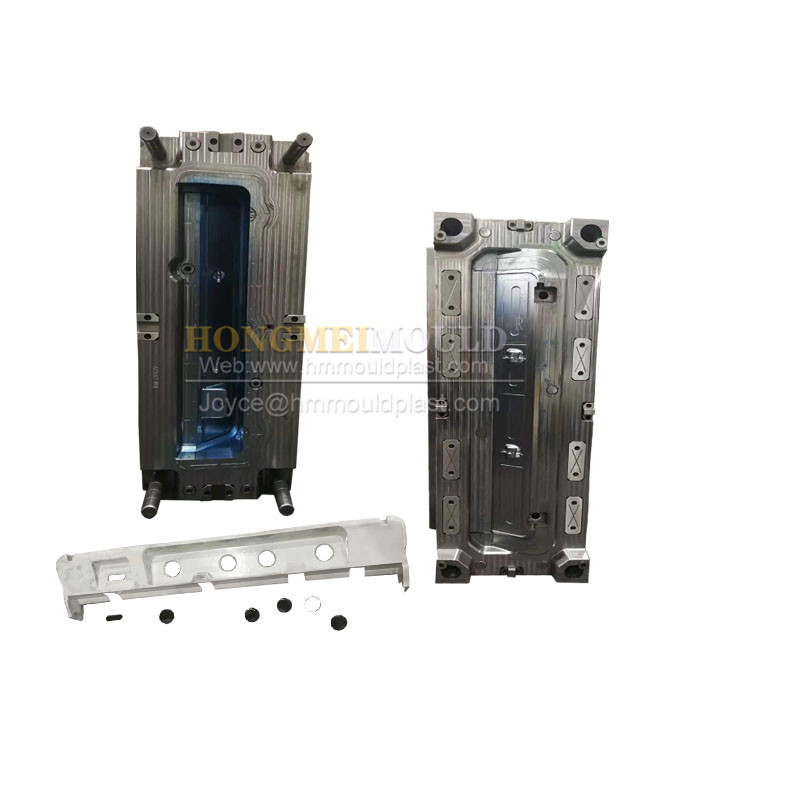

Model:Plastic Washing Machine Parts Injection Mould-HM02

Send Inquiry

Product Description

As the professional manufacture, we would like to provide you high quality Plastic Washing Machine Parts Injection Mould. And we will offer you the best after-sale service and timely delivery.

Plastic Washing Machine Parts Injection Mould Details

Parts Material: ABS

Mould Steel: P20

Mould Cavity: Single cavity

Runner System: Hot runner

Hot Runner Brand: YUDO

Point Number:4 points

Ejection Technique:Ejector pin

Cycle Time: 60S

Mould Life: 500,000 shots at least

Mould Size:1000*400*500mm

Injection Machine Tonnage:350T

Mould Delivery Time: 45 days



Why Washing Machine Parts Mould Choose YUDO Hot Runner?

YUDO specializes in Hot Runner system, which is the core components of mold, and manufacture all essential part internally including Nozzle, Manifold, Heater, Controller and so on.

Advantage of Hot Runner

- Shorter cycle time: No runner controlling the cooling time,reduce the washing machine producing time.

- Easier to start: Without runners to remove, and auto cycle occurs faster and more frequently, so we can get more washing machine parts.

- Fewer sink marks and under-filled parts: Unlike when plastic flows through a cold runner and loses heat to mold plates

- Design flexibility: Can locate the gate at many points on the part

- Balanced melt flow: Separate melt channels are in externally heated manifolds that are insulated from mold plates surrounding them.



Which Size Injection Machine Should We Buy?

This problem we will according to our washing machine mould size on basic and at same time, we could pay attention to mould cavity and products weight.

Our washing machine part mould only have 1 cavity, so we could accord to the mould size to choose suitable injection machine, this mould we choose 350T injection machine is enough.



Our Washing Machine Mould Test Video




Other Washing Machine parts mould

A set of washing machine have many kinds of plastic parts, every parts should match fine, so all the parts mould make by one factory is good for clients. We know the plastic material shrinkage to design each parts, of course,if we are not sure the design,we will take the sample to mold flow analysis.



About Mold Flow Analysis

Check the pictures below

In order to reduce the lose and time, we take our samples to mold flow analysis, this will help us get beautiful surface and not leakage.



Washing Machine Mould Water Channel

1.To cool the hotter section of the component in the mold. The cross section of the component has to be checked and the one with a greater area should be balanced or forcibly solidified

2.To maintain injection mold temperature uniformity in the molding area.

3.Sometimes hot oil circulation is also used to heat the mold to certain temperature or maintain the mold at a certain temperature.

4.The type of plastic plays a very important role in deciding the diameter of the cooling channels.

5.The mold design requirement is also a criterion (what is the quantity expected from a single mold).



Washing Machine Mould Package and Delivery

Package: Plastic film + Wooden case

Delivery Method: By air, by train, by ship.


If you interested in our washing machine parts mould, contact us.
