Plastic Shower Sprayer Injection Mold

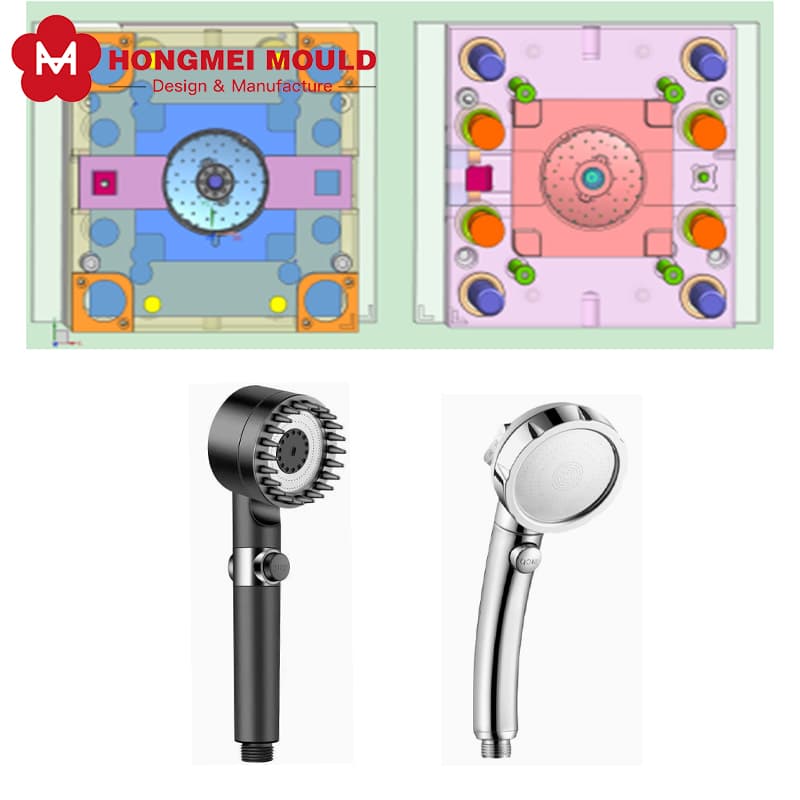

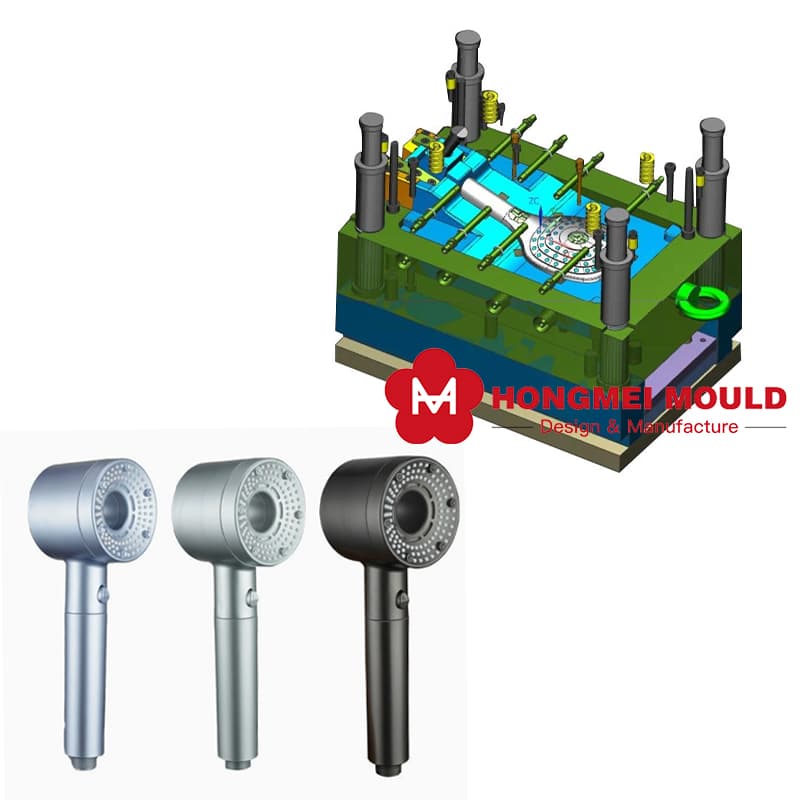

Taizhou Hongmei Mould Plastic Co.,Ltd is a professional manufacturer dedicated to designing and producing high-quality shower head injection mould for global bathroom sanitary enterprises. The whole design of shower head injection mould strictly follows international sanitary product production standards, all structural parameters of shower head injection mould are confirmed according to customers’ 2D drawings, 3D models or physical shower head samples. Our technical team uses UG and SolidWorks software to complete the overall structural layout of shower head injection mould, including cooling channel layout, side core-pulling mechanism, pinpoint gate feeding system and mechanical ejection system, each component of shower head injection mould is calculated repeatedly to avoid shrinkage, deformation and scratch problems during plastic injection molding.

Material selection determines the service life and stability of shower head injection mould, we mainly adopt imported 718H pre-hardened steel and S136 stainless anti-rust steel to process cavity and core of shower head injection mould. S136 steel is the preferred raw material for shower head injection mould applied in bathroom humid environment, S136 steel can be polished to mirror surface, effectively preventing rust and water stain erosion in long-term production. All steel materials for shower head injection mould are complete with tempering heat treatment, the hardness of shower head injection mould reaches standard value, wear resistance is greatly improved, the service life of standard shower head injection mould can reach 300,000 to 600,000 molding cycles, far exceeding ordinary cheap moulds on the market.

We provide two mainstream structural schemes for shower head injection mould: cold runner structure and hot runner structure. Cold runner shower head injection mould is cost-effective, suitable for small-batch trial production and medium-batch orders; hot runner shower head injection mould cancels waste runner materials, reduces raw material loss, the surface of finished ABS shower head products has no obvious gate mark, the appearance is high-gloss and delicate, hot runner shower head injection mould is widely favored by European, Middle Eastern and Southeast Asian large sanitary ware manufacturers for mass continuous production. According to customer output demands, we can customize 1-cavity, 2-cavity and 4-cavity multi-cavity shower head injection mould to shorten molding cycle and cut down customers’ unit production cost.

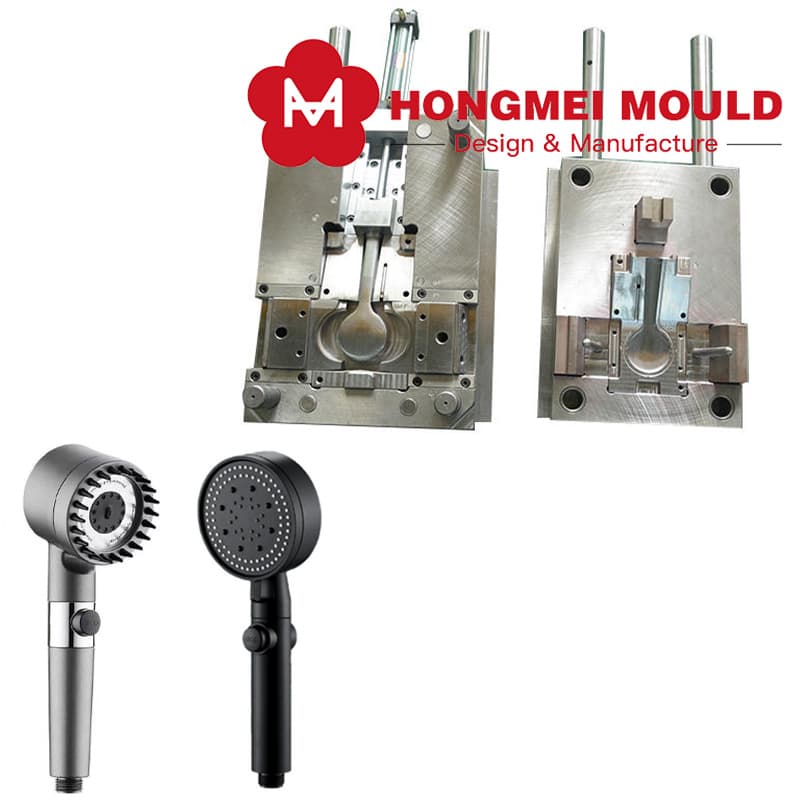

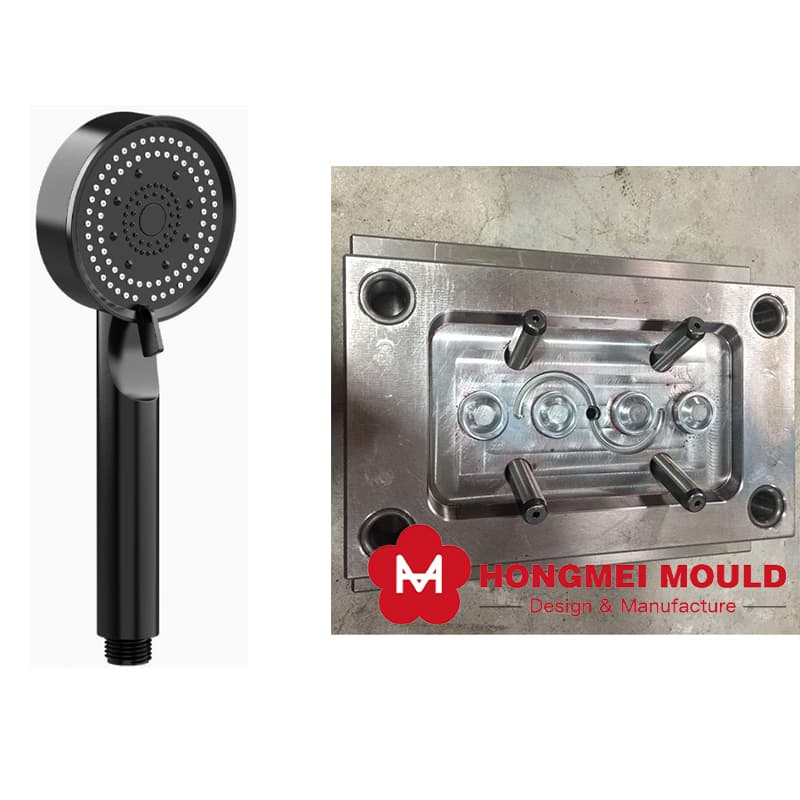

The processing precision of shower head injection mould is controlled within ±0.02mm by our high-precision CNC milling, EDM and wire cutting equipment. The inner flow channel and fitting clearance of shower head injection mould are finely polished and assembled, so the opening and closing movement of shower head injection mould is smooth without jamming, the mechanical ejection system of shower head injection mould can push out curved shower head shells stably every time, effectively lowering the reject rate of finished products. Up to now, our factory has customized more than 200 sets of shower head injection mould for overseas customers, covering handheld shower heads, top overhead shower heads, shower handle accessories and other all series bathroom shower products.

After the assembly of shower head injection mould is finished, we will conduct multiple times of trial injection testing on shower head injection mould, shoot out complete plastic samples and send sample photos, videos to customers for confirmation. If customers put forward adjustment requirements for samples, our engineers will revise the internal structure of shower head injection mould free of charge until customers are fully satisfied. After the delivery of shower head injection mould, we supply lifelong remote technical guidance and regular maintenance suggestions for shower head injection mould, helping customers operate shower head injection mould safely and stably for a long time.
