Plastic Hair Dryer Shell Injection Mould

We are a professional China Plastic Hair Dryer Shell Injection Mould manufacturer, if you want to know more, you can contact us.
Hongmei Mould has advanced tooling equipment in order to make sure our mould quality and mould precision

Send Inquiry

Product Description

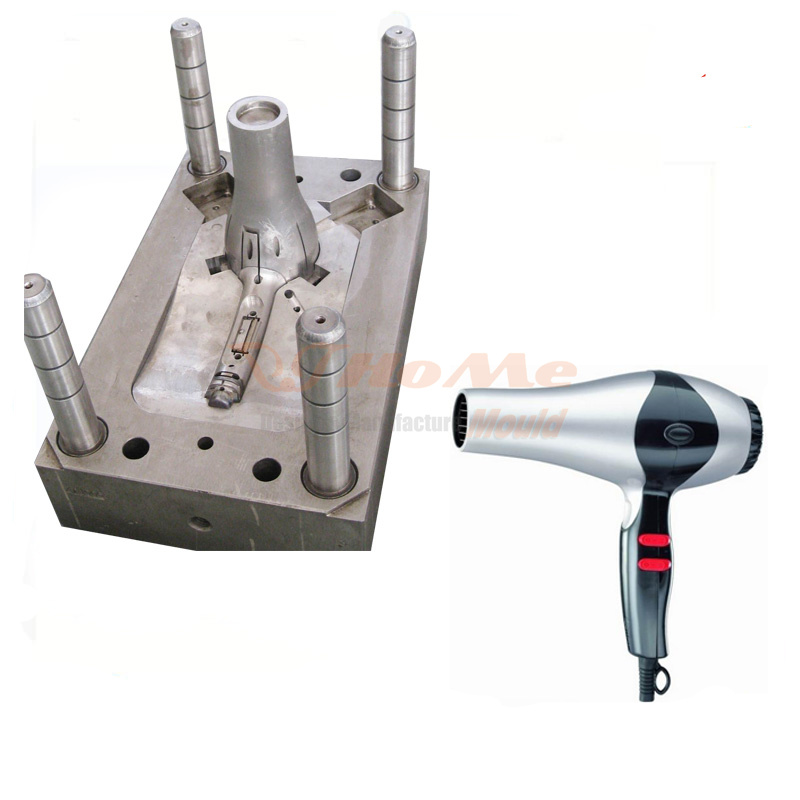

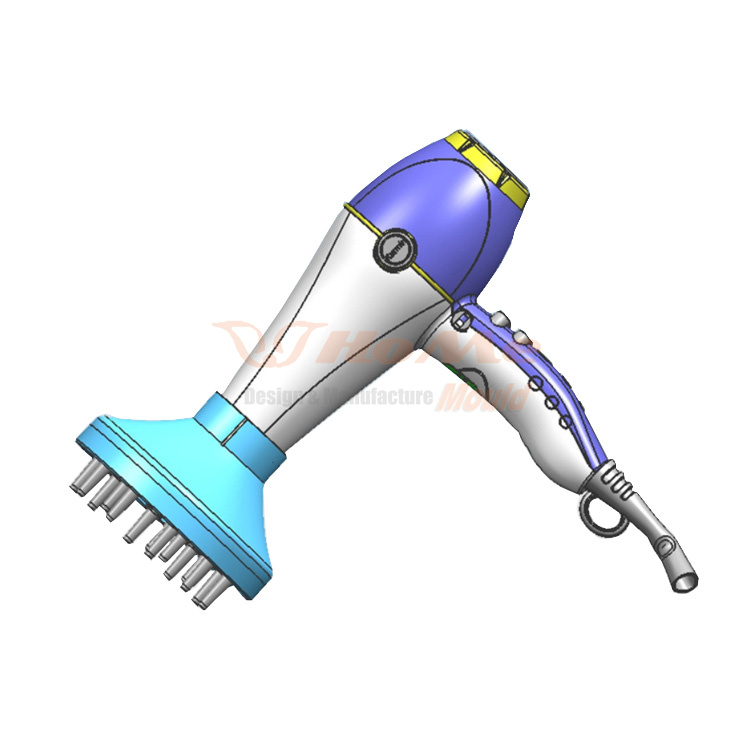

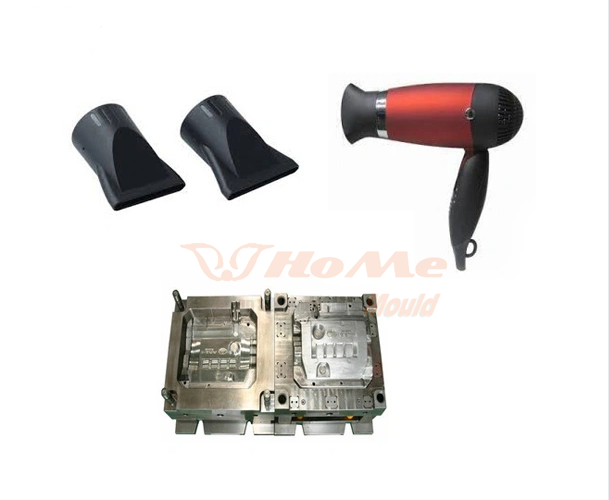

Plastic Hair Dryer Shell Injection Mould


Shell size: 230*215*90mm



Shell weight: 165g



Mold steel: P20



Mold base: 45#



Cavity: single



Injection system: cold runner



Gate type: direct gate



Sample time: 45 days after design confirmed



Payment term: T/T, 50% prepayment+50% balance



Customize your molds with your sample.



The design department of Plastic Hair Dryer Shell Injection Mould



Hongmei Mould is experts in 3D design, industrial design, mold design, rapid prototyping, and other services. Aoxu Mould has a group of experts who work exclusively with each client to establish the best options and specific requirements for each product line, prototype, or design you want. The goal of us is to provide solutions to the industry, helping to effectively reduce costs and optimize all processes.



We have highly skilled software, including the latest tools in CAD-CAM, Unigraphics, and Pro / Engineer wildfire, by providing them with simulations and alternatives for the development of alternative products with great practical application for the plastic industry manufacturers.



Through our comprehensive services in Industrial Design, Prototyping, Packaging Plastics-Mold, your company will have the opportunity to obtain maximum performance in less time, for the most economical production of parts or molds and achieve more economic optimization of all absolute production processes.



Hongmei Mould invites them to reach new levels of profitability and productivity. Email us or contact us to find the ideal solution in mechanical design for the industry for all their CNC machines.



During our successful track record, an enviable reputation for quality and efficiency to respond to the demands of the manufacturing industry with practical solutions in the areas:



-Industrial Mechanical Design



-Industrial Design 3D and 2D



-3D Modeling



-2D Drawings



-CAD / CAM Designs



-Plastic Hair Dryer Shell Injection Mould Design




-Product Development and Engineering Projects



-Pro-Engineer Wildfire Software



-Digitizing parts



-Rapid Prototyping


Advantages and disadvantages of direct gate



*Advantages:



The injection pressure will reduce due to direct cavity filling.



Gate and runner design easily.



Mold making is easy, low cost of design.



Easy to design and maintenance.



*Disadvantages:



We have to cut the gate after molding.



The sample has a sink mark near the gate position.



This gate is big so after the gate cutting process, the sample has marks at a gate position.



How to design a direct gate?




d=dv+1 mm



dv: nozzle exit diameter.



d: diameter of sprue orifices.



D=t + 1.5 mm



+ t: The thickest of product.



+ D: The diameter of the sprue gate depends on the location at the molded part.



It should not be thicker, though, because it then the melt solidifies too late and extends the cooling time unnecessarily.
