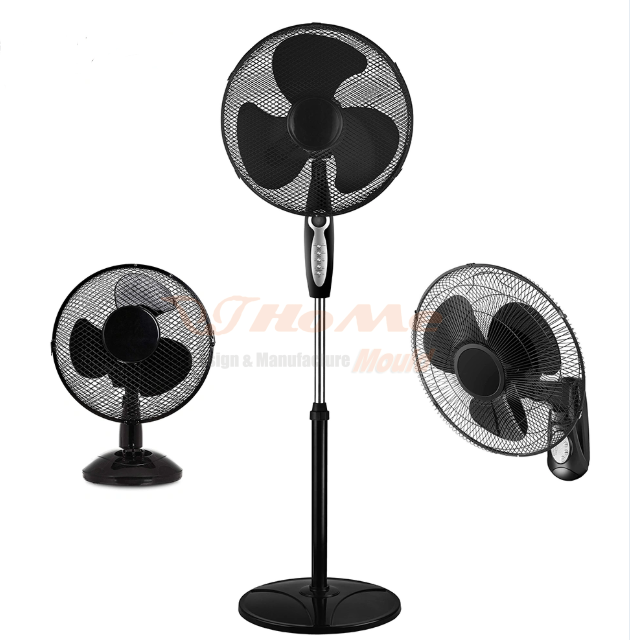

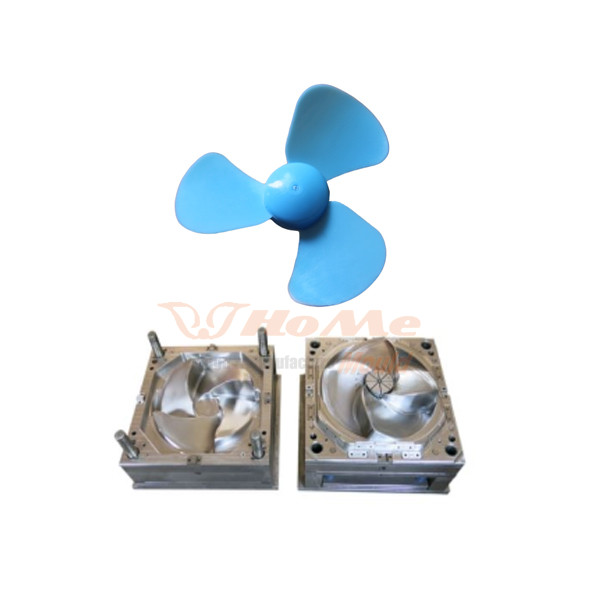

Plastic Fan Household Mould

Mold name: Plastic Fan Household Mould

Product Size: 40mm(Diameter)

Mold cavity: 1 cavity

Mold size: 630x630x670mm

Suitable Machine: 380T

Mold main material: S136

Injection system: Yudo hot runner

Mold ejection system: Eject plate

Mold Cycle Time: 18-20 seconds

Mold running: 1M shots.

Delivery Time: 45 working days.

Mold Features: Multi-slider movements, high precision &. Balance test passed.

Mould Design Center

Design is the foundation of the product. A good design make the less of the repair work. Our design department has advanced CAD/CAE software, you can send us file like . We are the most suitable midwife of your great ideas! We can also put out a complete 2D and 3D mold blueprint according to the products provided by customers. You can send us the file in format of IGES, DXF, DWG, STP, X_T, PRT, etc or you could send us handwrite drawing or original sample is fine as well.

Machining Capacity

Mould quality and processing period depend on the degree of the advanced equipment, We will work with great care and great passion aiming at your satisfaction and trust.

Quarter capacity:120-150 sets for the size within 1500mm, for larger sizes, it depends on the complexity degree of the products.

Mould size:the maximum processable size can be 4m-5m.

Mould weight:the maximum processable weight can be 50 tons.

Processing precision:the minimum precision can be 0.05mm, the minimum precision of 1000mm products can be controlled to within 0.3mm.

Special processing:We have the processing capacities for mirror EDM, large EDM, high-speed CNC, large gantry CNC and long hole.

Mould shipment Details

- Quality inspection of plastic mold installation:

Complete inspection of plastic mold to ensure the continuity of mold structure and the standard of parts. The project manager and quality inspection personnel shall inspect the plastic mould according to the company's standard, so as to ensure the quality of the products. Once the problem is found, it can be corrected immediately, and effectively prevent the occurrence of errors. In addition, we continuously test the cooling system, hydraulic oil duct system and hot runner system of plastic mold

Checking before mould delivery

1. After confirming the sample of customer, our manager will inform our team leader to check the mould. Including the 3d mould design, customer's requirements and mould trial problem.

2. Our inspector will according the files above to check the mould.

3. If our customer need the water channel drawings and oil channel drawings, we will print for you, of course we could provide mould water transport pictures.

4. After all the detailed checking no question, then we will inform our team leader to packing the mould.

- Mould specification

1. Team leader will fill in the instruction

2. Packing all the mould accessories into a wooden case

3. Prepare mould trial report, mould using instruction, mould temperature control box instruction and quality certification to customer.

- Mould Packing

1. Cleaning the cavity and core, no iron filings

2. Spraying the antirust paint inside and outside

3. Wrapped with the plastic film

4. Putting into a wooden case or wooden pallet

FAQ

Q: Are you mould factory?

A: Yes, Hongmei company is established in 2014 which specialized in making injection mould.

Q: What kind of mould you can make?

A: Plastic injection mould,mainly including household part mould, appliance shell mould, thin wall part mould, auto motive part mould, industry part mould, pipe mould and pet preform mould.

Q: What about your payment terms?

A: 50% prepayment in advance, and the balance should be paid before shipment.

Q: How long to finish a mould?

A: Mostly will be finished in 45 days, but some complex and big mould will spent more time.

Q: How's annual output of your company?

A: We can make 300-500 sets each year.

Q: How long of the mould warranty period?

A: The mould warranty period for 1 year(Damage caused by human factors or accident are not within the the scope of warranty), and wearing parts will send to you for free.

Hongmei company will customize the mould for you to save time and money. We are looking forward to cooperating with you! Good after sales service! Your satisfaction is our pursuit!
