Plastic Car Rear Lamp Injection Mould

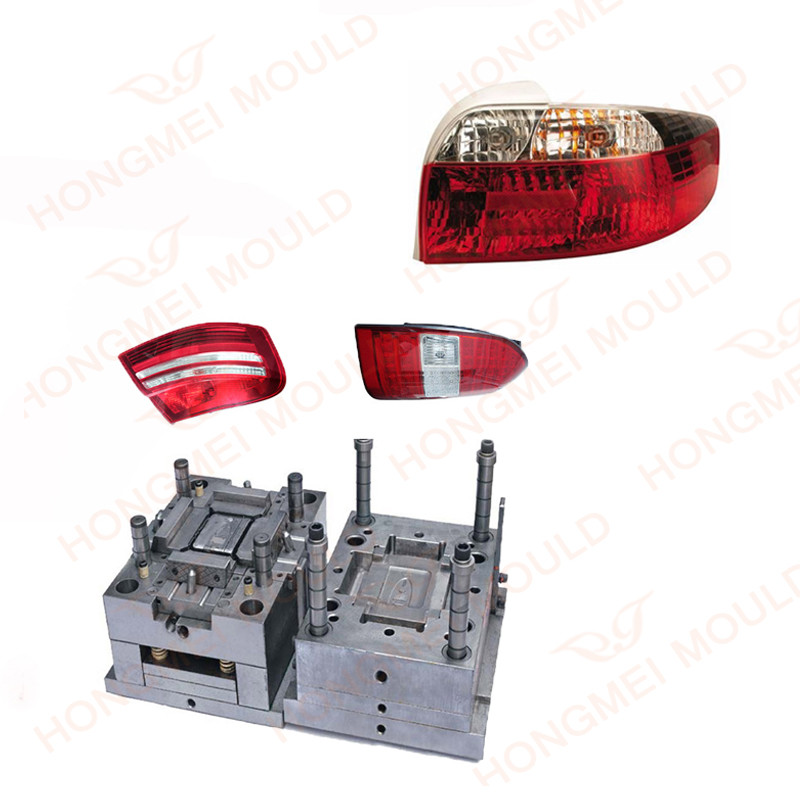

  • Plastic Car Rear Lamp Injection Mould - 0 Plastic Car Rear Lamp Injection Mould - 0

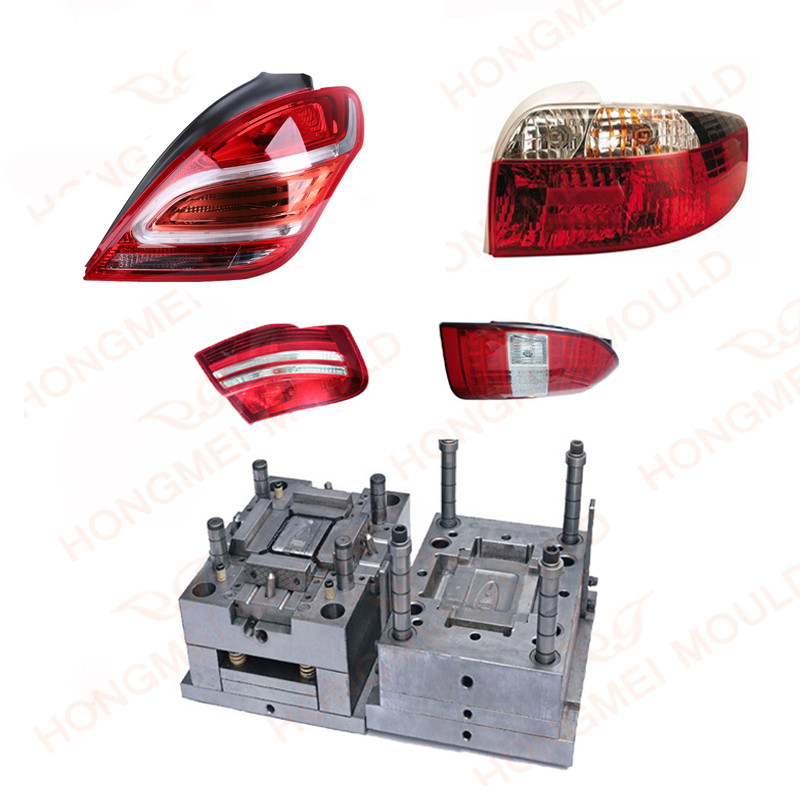

  • Plastic Car Rear Lamp Injection Mould - 1 Plastic Car Rear Lamp Injection Mould - 1

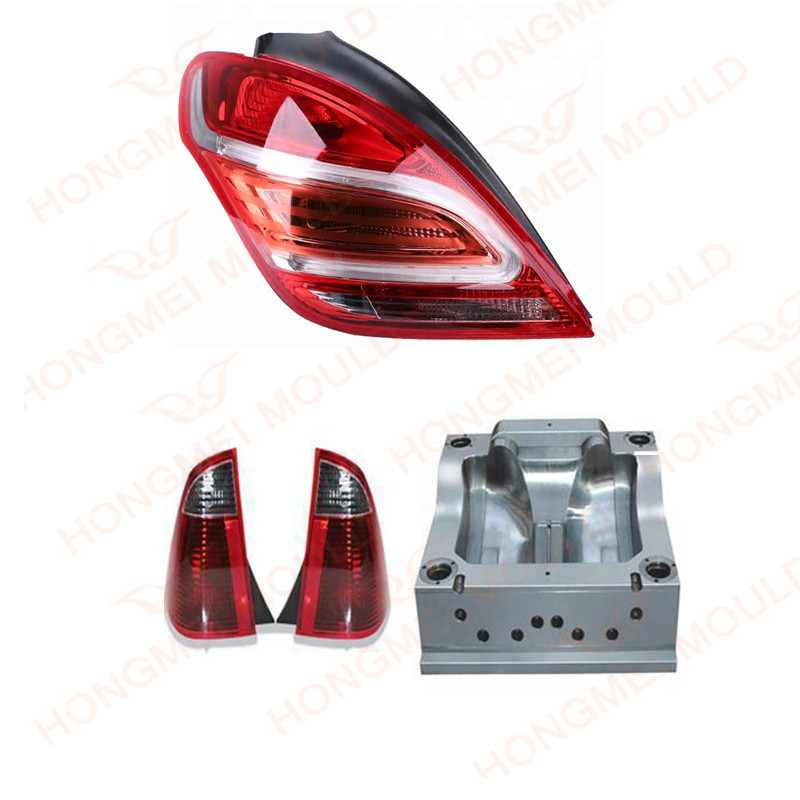

  • Plastic Car Rear Lamp Injection Mould - 2 Plastic Car Rear Lamp Injection Mould - 2

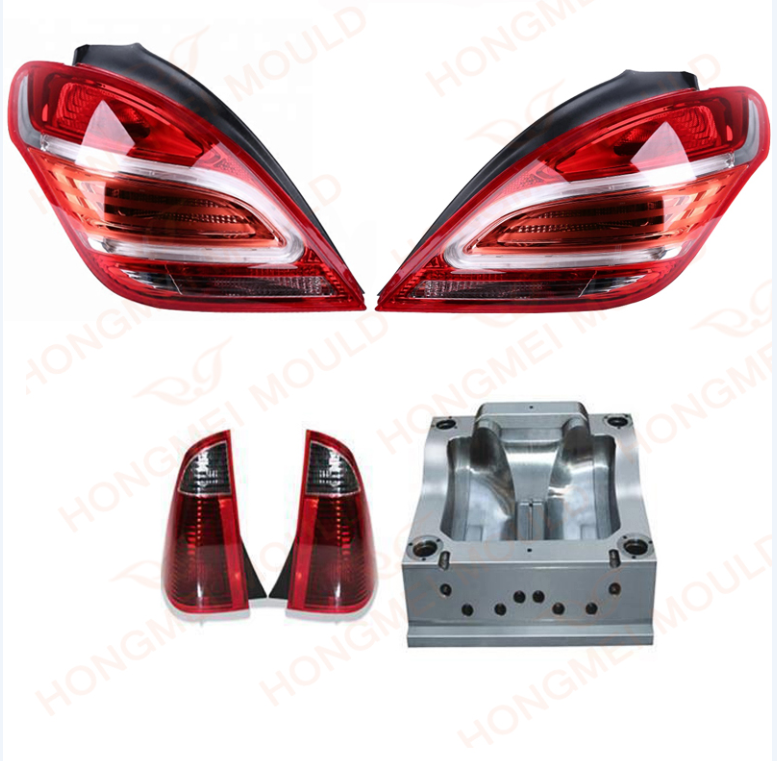

  • Plastic Car Rear Lamp Injection Mould - 3 Plastic Car Rear Lamp Injection Mould - 3

Plastic Car Rear Lamp Injection Mould

We are a professional China Plastic Car Rear Lamp Injection Mould manufacturer, if you want to know more, you can contact us.
We will satisfy the assembly needs of products with different complication, execute flow delivery to the dock or distribution sites as customer’s demand.

Send Inquiry

Product Description

Plastic Car Rear Lamp Injection Mould

Mold Description

Part name: Car lamp cover

Part Material: PP+EPDM     Contraction: 1.5%

NOs. Of cavity: L+R

Mold material: P20 steel

Mold base: C60

Injection system: Direct  injection submarine cold gates

Mold lifetime: at least 300,000shots

Market: After-sales

Mold accessories: European standard

Car Rear Lamp Mould R&D Design

Engineering Department is composed of the engineers who are very experienced and full of developing spirit. They are engaged in designing the injection mould and compression mould and new products. In order to meet customers’ satisfaction, the corporation always pays attention to the trend of the hardware and the software.

Hongmei adopted international advanced system - CAD/CAM/CAE in mould design and Rear Lamp Molding.

Our engineering and mould-making technology includes:

 Pro/ENGINEER (3D Modeling)

SolidWorks (3D Modeling)

AutoCAD (2D Modeling)

MoldFlow Mold Advisor (Plastic flow/deform simulation)

MasterCAM (CNC Programming)

Unigraphics (CNC Programming)

CNC Machining Centers

CNC EDM’s (Electro-Discharge Machining)

Wire-Cut Machines.

 Rear Lamp Design

To get a good rear lamp product, we design Rear Lamp Mold should pay attention to follow tips:

* wall thickness

wall thickness of  injection molded Plastic products is usually around 0.80-3.00 mm, too much wall thickness would invite shrinkage easily and produce voids, as to too thin wall, it is difficult to fulfill the cavity.

* Fillet(R)

The minimum “R” is usually greater than 0.3 , for the too small “R” would lead to too much difficulties for plastic Rear Lamp Mold making.

* Boss

Bosses should be designed to avoid sinking and sharp corners.

* Surface Pattern

The surface of plastic products can be smooth surface (good Polish on cavity), EDM mark (mold cavity formed by electrode electrical discharge) ,texture and engraving surface.

* Letter

The convex letter is formed by concave cavity ,while concave letter is formed by convex letter on the cavity,which is difficult to machine a bit.

Some mold have many more requirements, we will according to the product character to design our mold.

Our Rear Lamp Type

Hongmei Mould specialized design team will do Photometric Analysis For Reflector & Light Guide, do vibration simulation analysis for judge get the pressure and the highest pressure speed for each part, do mold-flow analysis on product to predict how a Rear Lamp Mold might function and where it might fail before production takes place, avoiding costly design & machining errors before they occur. Together with our skillful mould making team help to bring your new product to market in a short space of time, we welcome your inquiry or have visit to our factory for a face to face negotiation!


1. What kind of material can you produce?
ABS, PP, PC( Polycarbonate ), Al6063, Die Cast Aluminum, Iron, Steel Stainless, etc.

2. What kind of accessories can you provide?
End plates, silicone gasket, mounting brackets, cable gland, screws, etc.

3. What kind of service can you provide?
Drilling, silkscreen printing, laser marking, painting, design, OEM/ODM Service, etc.

4. What about the transportation?
Sea transport and Air transport

5. Can you customize the new design for us?
Yeah, welcome to develop new mould with us, including OEM & ODM!

6. Can you provide us the detail drawing for us?
Yes. pls feel free to contact with us.
