As the professional manufacture, we would like to provide you high quality Ice Cream Box Mould. And we will offer you the best after-sale service and timely delivery.
Parameter (Specification)
Mould Name
|
Ice Cream Box Mould
|
Mold meterial
|
P20,2738,718H,NAK80,2316,S136,H13,etc
|
Mold base
|
Self-mad:LKM:DME
|
runner
|
Cold runner and hot runner
|
Hot runner brand
|
Chinabrand:HASCO:YUDO and so on
|
Degsin software
|
UG:Aoto CAD and so on
|
Mold life
|
50-500 million Shots/ 5-6 years, Even in 10 years in good maintenance
|
T1 time
|
45-60 days
|
package
|
Wooden Case
|
Plastic material
|
PP PC ABS PET PE PVC PMMA TPR PA6,PA66,ASA,POM,PPS,ABS,ABS+GF,ABS+PC,POM(Derlin)
|
Warranty period
|
1 year or 1 million shot times(in this period, if the mold have problem, we will offer the parts or service by free, but not include the problems cased by wrong operation)
|
Mould Precision
|
+/-0.01mm
|
Mould Cavity
|
Single Cavity, Multi-cavity
|
Gate Type
|
Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.
|
Mould Surface Treatment
|
EDM, texture, high gloss polishing
|
Quality System
|
ISO 9001,SGS
|
HS code
|
8480719090
|
Origin
|
Made in China
|
Installation
|
fixed
|
Cavity
|
Single/multi
|
Specification
|
Depends on customer’s requirements
|
Mold cooling system
|
water cooling or Beryllium bronze cooling, etc.
|
Mold hot treatment
|
quencher, nitridation, tempering,etc.
|
Product Feature and Application
Hongmei Mould Plastic is a famous plastic mold manufacturing enterprise, specializing in the production of various high efficiency, high difficulty, high precision plastic mold enterprises. It is not only a professional plastic mold manufacturer, but also an injection mold factory that provides complete solutions for the plastic molding industry.
Sincere cooperation, you are welcome to contact us at any time.
Hongmei Mould Design--- China Excellent Mould Supplier
the core of mold life! Good mold structure design is the premise of a qualified mold manufacturing. Our mold designers and stylists have more than 10 years of professional mold design and manufacturing experience, and can analyze the mold structure and product structure in all aspects (including: mold flow analysis, mold demoulding slope, product surface miniature, gating system design, exhaust system design, cooling system design) The most important and easy problems of these molds will be repeatedly tested during mold structure design.
Hongmei Mould flow Analysis--- China Excellent Mould Supplier
Hong Mei Mould Plastic will provide customer flow analysis, and use simulation software to verify the basic details of filling process, dissolution wiring, deformation and other die design. These characteristics will define the high quality of the die to ensure the accuracy of the initial stage of the project, so as to ensure the success at T1.
Mould Design Center-Project Management--- China Excellent mould supplier
In many stages of project development, project personnel and technical designers discuss design, development and manufacturing in strict accordance with project management methods, in order to provide customers with the most perfect solutions and ensure that the quality of project development exceeds customer requirements.
Hongmei Mould Maintenance--- China Excellent Mould Supplier
Mold maintenance is more important the more times mold repair, the shorter its life; and the better mold maintenance, the longer its service life. Mold maintenance is mainly divided into three points:
1.Daily maintenance: all kinds of moving parts such as thimble, row position, guide pillar, guide sleeve oil, mold surface cleaning, water drainage, this is the mold production daily maintenance.
2. Regular maintenance: regular maintenance includes cleaning the exhaust groove, adding exhaust gas to the burning black position, and correcting the damaged and worn parts.
3. Appearance maintenance: paint the outside of the die to avoid rusting. When lowering the mold, the fixed and moving mold should be coated with antirust oil. The mold should be closed tightly to prevent dust from entering the cavity.
Hongmei Mold steel--- China Excellent mould supplier
Choose mould steel directly determine the length of mold life! According to the module requirements of the products, we select cost-effective mold materials for each customer. On the premise of meeting the product requirements, we can also reduce unnecessary cost waste for customers.
Mould Desgin Show
Mould Process Mould Show

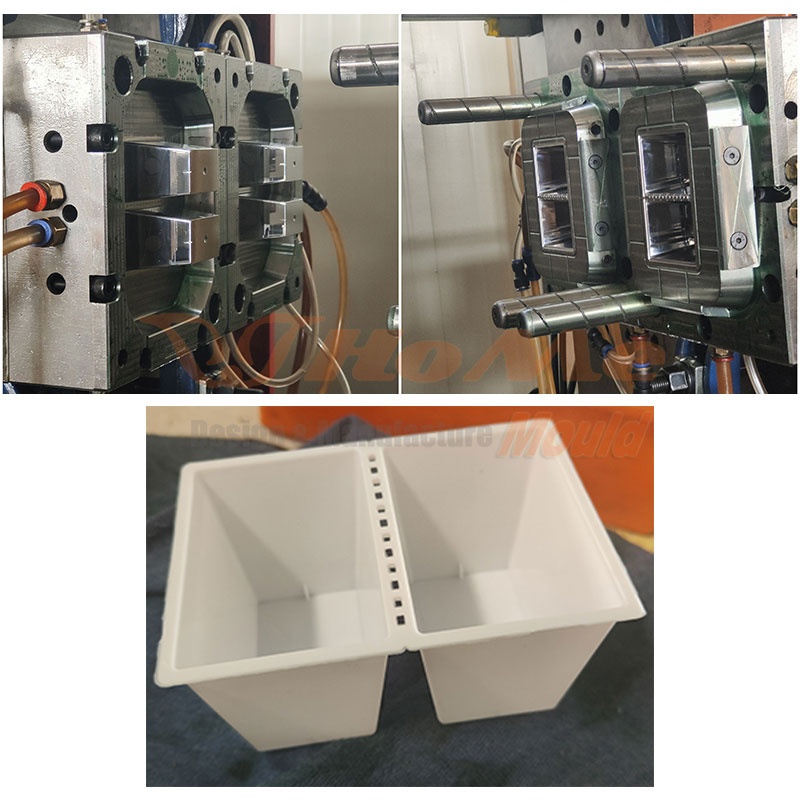

Mould Test
Mould Manufacturing Culture and Service
HongMei Mould’s mold manufacturing culture is particular. We believes that if we do everything based on RESPONSIBILITY, all thing are well done. Thus, our Mold Manufacturing core culture is responsibility.
HongMei Mould has so many important points and all of them must be well done during the mold manufacturing. The action included:
-Inquiry from customer before mold manufacturing.
During this processing, the communicators of both sides should offer the correct information or specification to be sure that the pricing and technical points are meeting buyer's requirements.
-During the Manufacturing, the designer needs to be responsible to make the mold design. This responsibility is to customer and to company too, he has to consider how the customer use this mold, how to design the mold into long life tool, how to design the related components to make it easier tooling during the Mold Manufacturing and higher precision. These considerations only can be done by the responsible person, though Hongmei Mould has the rigorous QC for the mold design.
-Mold components machining during the Mold Manufacturing.
The machine operators with strong responsibilities, then the mold components can be precise enough to meet the drawings tolerance requirements. Here the responsibilities are indicated by careful steel installation, rigorous machining process following and rigorous dimension controlling during and after the machining. Otherwise, the errors will extend to the next processing. This will cause the terrible delaying on the mold shipment.
-Mold components dimension controlling after the machining. During the Manufacturing, the cavities, cores and other mold components, after the machining, they need serious dimension controlling. CAM team is responsible to be sure that all the dimensions are according with the drawings.
And Mold assembling workshop, mold mass production simulation workshop, all of them they need to be responsible to be sure that the Mold Manufacturing is successful and the delivered mold is top quality according with HongMei Mould standard.
FAQ
A:Which kind information need for quotation in HONGMEI PLASTIC MOULD?
1,Sample photo with size or 2D/3D design
2, Cavity quantity
3, Runner type, cold or hot
4,Mould steel type,
P20, 718, 2344,H13,S136,2316,and so on.
5,Injection machine parameter or plate size(tie rod distance)
6:3~15 days for product mould design, 15~60days for mould production after deposit payment and mould design confirmed
7:: Shipping Type in HONGMEI MOULD
y Air Or By Sea
8:Guarantee in HONGMEI MOULD
One year guarantee
9:Plastic mold base system:
Our company's mold base standard: LKM, DME, HASCO
We can receive the file format: 2D: DWG /. DXF /. PDF
3D: .igs / .step / .x_ t / .prt /.sldprt./.eprt./easm
Plastic mold base: DME, hasoco, Futaba, LKM
Hot runner: mould master, master tip, husky, HASCO, DME, YUDO, INCOE, thermoplay
Hydraulic cylinder: Parker, Taiyo, Staubli, Jufan
Standard parts: DME, HASCO, Misumi, progressive, Staubli, Daido, LKM
Dermatoglyphics: Mold-Tech, ys, Nihon
