Plastic Thin-wall Mould

Plastic Thin-wall Moulds generally include (disposable cup mould, plastic thin-walled lunch box mould, two-color mould, medical mould, gas assisted injection mould, etc.)
Plastic Thin-wall Moulds Bi-injection Mould
Bi-injection mould with the rotation system made the molding of dual-color product fast and simply. Please kindly see the videos of the bi injection moulds which we have made. We have Bi-injection moulding machines in our workshop which are especially for moulds testing, we can offer you the bi-injection moulding service, can consider the mould invested by us.
Plastic Thin-wall Moulds bi-color PC cupDisposable Tableware Mould
HongMei Mould has many experiences in stacking mould manufacturing, guarantee mould life with 10 million shots. Good cooling system. Accurate products weight controlling for each caivty, we have made a lot of knife mould, fork mould and spoon mould.
 Mould Name: Disposable Tableware Mould
 Product Size: 16cm
 Product Description: Knife and fork spoon PP, PS material products
 Mould Cavity: 24+24 cavity
 Mould Size: 550x550x700mm
 Suitable Machine: 200HH
 Mould Main Material: S136 H13
 Mould Injection System: 1 Point valve gate system
 Mould Ejection System: ejector pin
 Mould Cycle Time: 5 Seconds
 Mould Running: 3M
 Delivery Time: 35 working days
 Mould Features: Simple structure Mould , Good cooling water system, Excellent product sub-type effect, Accurate weight control products

 Mould Name: Bi-injection Mould
 Product Size: φ80x130mm
 Product Description: two color PC cup
 Mould Cavity: 1+1 cavities
 Mould Size: 600X500X450mm
 Suitable Machine:  250Ton
 Mould Main Material: S136
 Mould Injection System:hot runner
 Mould Ejection System: stripper
 Mould Cycle Time: 35 Seconds
 Mould Running: 1M
 Delivery Time: 40 working days
 Mould Features: great experience in bi-injection mould such as bi-color injection mould tooth brash, bi-color molding plastic caps, two color helmet, twin color injection moulds for glass, masks or baby toys of different colors
Plastic Thin-wall Moulds gas-assisted injection mould
Gas Assist injection moulding is normally applicable for components in which there are thick sections. Gas assist injection moulding is able to reduce the weight and reinform the plastic components after its molding finish. It is widely applied for gas assist injection moulding in chair mould, table mould, automotive mould and so on. HongMei made gas-assisted injection mould annully 100sets, and own our own equipment for injection with gas assist injection moulding technology.
Gas Assist injection moulding typical applications:
The gas flows into the path of least resistance in the thicker sections where the plastic interior is still in a molten state. Reduced in-mould pressures by up to 60%, and therefore reduced press lock forces enabling larger
The use of the gas injection moulding as a means of transmitting pressure uniformly throughout the moulding. mouldings on much smaller machines.
Reduced power consumption.
Reduced moulded in stress, and therefore improved dimensional stability with no distortion.
 Mould Name: gas-assisted injection mould
 Product Size: 500x550x850
 Product Description: gas-assisted chair
 Mould Cavity: 1 cavity
 Mould Size: 1400x900x850mm
 Suitable Machine:1150Ton
 Mould Main Material: 2738H
 Mould Injection System: Yudo hot runner
 Mould Ejection System: Ejector pin
 Mould Cycle Time: 55 Seconds
 Mould Running: 1 M
 Delivery Time: 65 working days
 Mould Features: gas assisted injection mould, rattan design high precision/ mouldtech textur
HONGMEI Mould Plastic adhere to the development and manufacturing guidance of "high speed, accuracy, efficiency, environmental protection, and low consumption" to improve production efficiency, reduce costs, and create economic benefits and value for customers.
More Plastic Thin-wall Moulds warmlly welcome contact me at any time.Wechat:249994163 whats App:008615867668057

View as

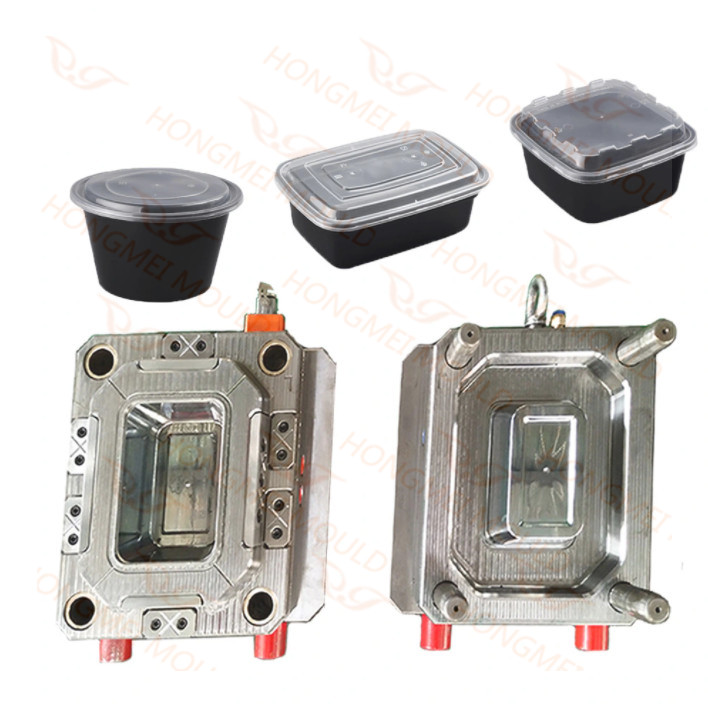

Disposable Thin Wall Injection Mould

Disposable Thin Wall Injection Mould

As the professional manufacture, we would like to provide you high quality Disposable Thin Wall Injection Mould. And we will offer you the best after-sale service and timely delivery.It’s commonly happened that after eating in the restaurant, people will package the rest food back; that food will be take-out to you if you don’t want to go outside.Disposable Thin Wall Injection Mould could help us solve this problem.

Read MoreSend Inquiry

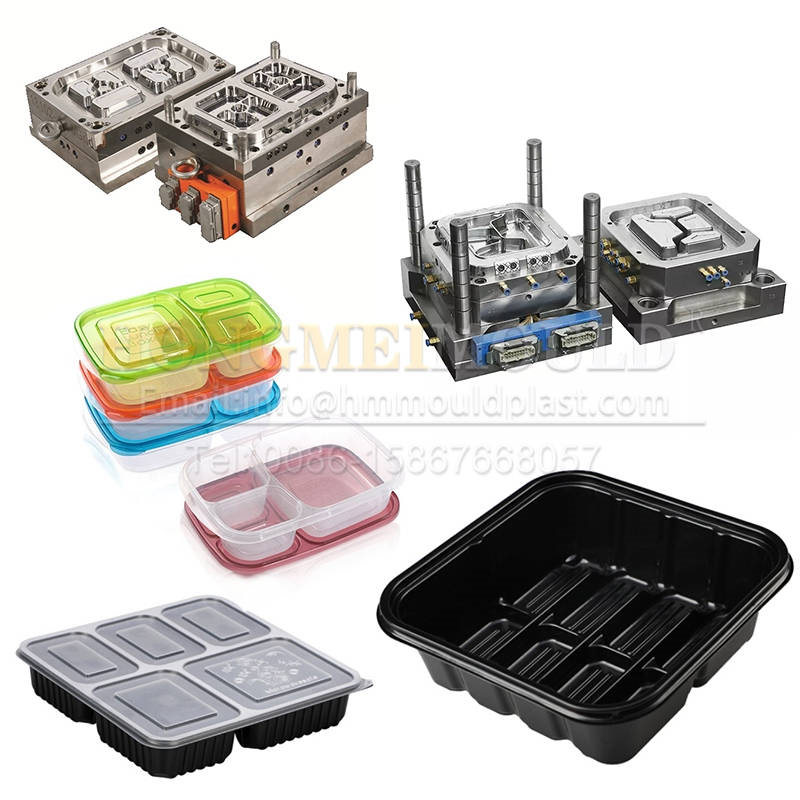

Disposable Packing Box Mould

Disposable Packing Box Mould

As the professional manufacture, we would like to provide you high quality Disposable Packing Box Mould. And we will offer you the best after-sale service and timely delivery.Hongmei plastic mould is a professional manufacturer of disposable packing box mould. The disposable packing box moulds we manufacture are round, square and oval. The number of cavities ranges from 2 to 12. The capacity is360ml 450ml 500ml 750ml 1000ml 1250ml 1500ml 1750ml The minimum wall thickness of 1750ml can reach 0.38mm, which can ensure the hardness of the lunch box and achieve uniform wall thickness at the same time. In addition, open the mold in Hongmei, and we provide agent processing service, which can greatly save your time and money.

Read MoreSend Inquiry
Transparent Cup Mould

Transparent Cup Mould

As the professional manufacture, we would like to provide you high quality Transparent Cup Mould. And we will offer you the best after-sale service and timely delivery.Hongmei plastic mould is a professional manufacturer of transparent cup mould. The transparent cup moulds we manufacture are round, square and oval. The number of cavities ranges from 2 to 12. The capacity is360ml 450ml 500ml 750ml 1000ml 1250ml 1500ml 1750ml The minimum wall thickness of 1750ml can reach 0.38mm, which can ensure the hardness of the lunch box and achieve uniform wall thickness at the same time. In addition, open the mold in Hongmei, and we provide agent processing service, which can greatly save your time and money.

Read MoreSend Inquiry
1500ml Large Thin Wall Fast Food Box Mould

1500ml Large Thin Wall Fast Food Box Mould

As the professional manufacture, we would like to provide you high quality 1500ml Large Thin Wall Fast Food Box Mould. And we will offer you the best after-sale service and timely delivery.Hongmei plastic mould is a professional manufacturer of 1500ml large thin wall fast food box mould. The 1500ml large thin wall fast food box moulds we manufacture are round, square and oval. The number of cavities ranges from 2 to 12. The capacity is360ml 450ml 500ml 750ml 1000ml 1250ml 1500ml 1750ml The minimum wall thickness of 1750ml can reach 0.38mm, which can ensure the hardness of the lunch box and achieve uniform wall thickness at the same time. In addition, open the mold in Hongmei, and we provide agent processing service, which can greatly save your time and money.

Read MoreSend Inquiry
1250ml Thin Wall Fast Food Box Mould

1250ml Thin Wall Fast Food Box Mould

As the professional manufacture, we would like to provide you high quality 1250ml Thin Wall Fast Food Box Mould. And we will offer you the best after-sale service and timely delivery.Hongmei plastic mould is a professional manufacturer of 1250ml thin wall fast food box mould. The 1250ml thin wall fast food box moulds we manufacture are round, square and oval. The number of cavities ranges from 2 to 12. The capacity is360ml 450ml 500ml 750ml 1000ml 1250ml 1500ml 1750ml The minimum wall thickness of 1750ml can reach 0.38mm, which can ensure the hardness of the lunch box and achieve uniform wall thickness at the same time. In addition, open the mold in Hongmei, and we provide agent processing service, which can greatly save your time and money.

Read MoreSend Inquiry
1000ml Thin Wall Fast Food Box Mould

1000ml Thin Wall Fast Food Box Mould

As the professional manufacture, we would like to provide you high quality 1000ml Thin Wall Fast Food Box Mould. And we will offer you the best after-sale service and timely delivery.Hongmei plastic mould is a professional manufacturer of 1000ml thin wall fast food box mould. The 1000ml thin wall fast food box moulds we manufacture are round, square and oval. The number of cavities ranges from 2 to 12. The capacity is360ml 450ml 500ml 750ml 1000ml 1250ml 1500ml 1750ml The minimum wall thickness of 1750ml can reach 0.38mm, which can ensure the hardness of the lunch box and achieve uniform wall thickness at the same time. In addition, open the mold in Hongmei, and we provide agent processing service, which can greatly save your time and money.

Read MoreSend Inquiry
<...23456>
OEM/ODM customized Plastic Thin-wall Mould can be wholesaled from HongMei Mould. As one of the professional China Plastic Thin-wall Mould manufacturers and suppliers, we have accumulated rich experience and we will continue to work hard. Plastic Thin-wall Mould made in China is not only of high quality, but also cheap. You can buy our latest selling products at low prices. In addition, we also support free sample. We are good at fashion and popular new styles. Reasonable price, On time delivery always is our tenet. You can rest assured to buy newest and hot selling products from our factory. For more info, please contact us. Look forward to working with you! Welcome friends from all walks of life come to visit, guide and negotiate business.
