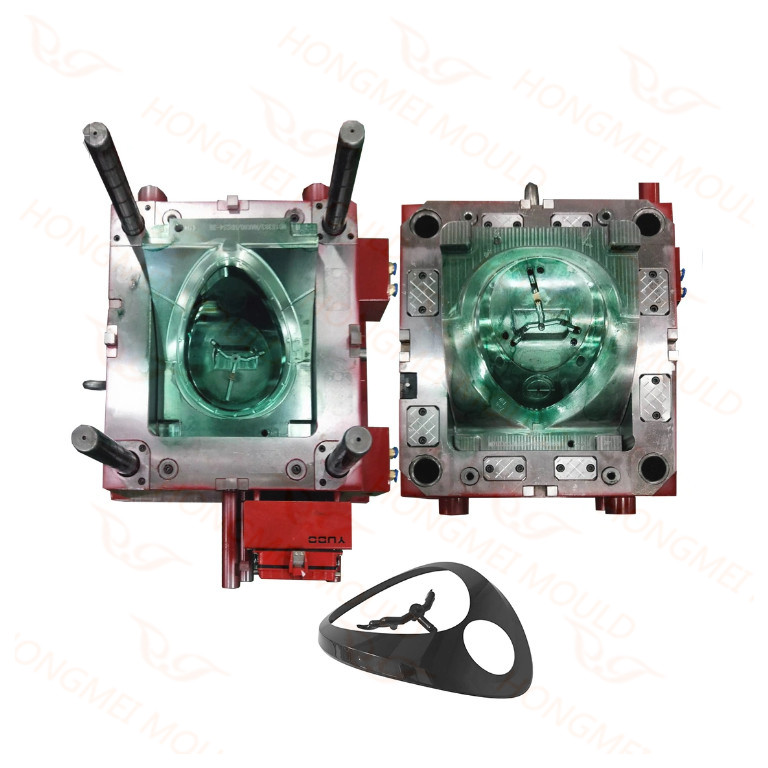

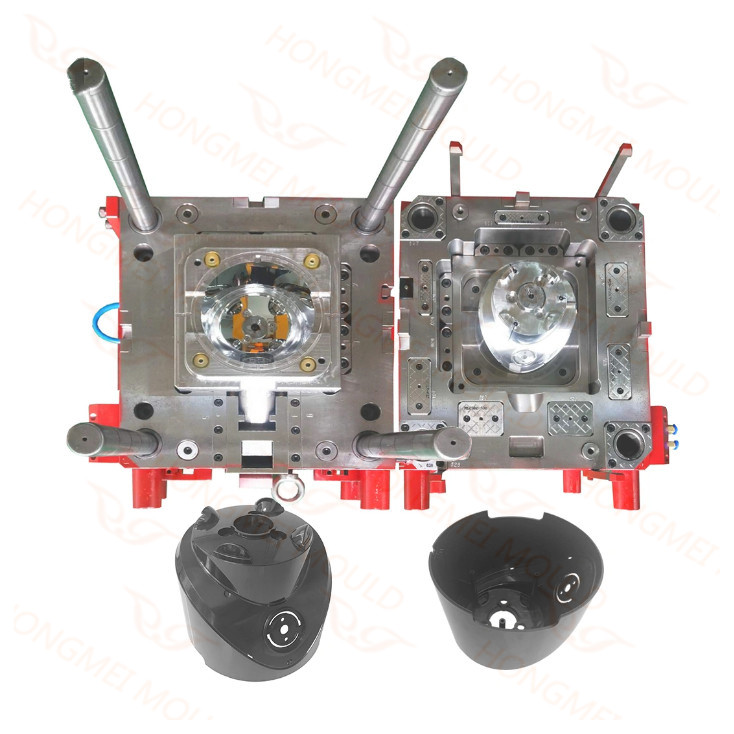

Baby Food Supplement Machine Shell Mould

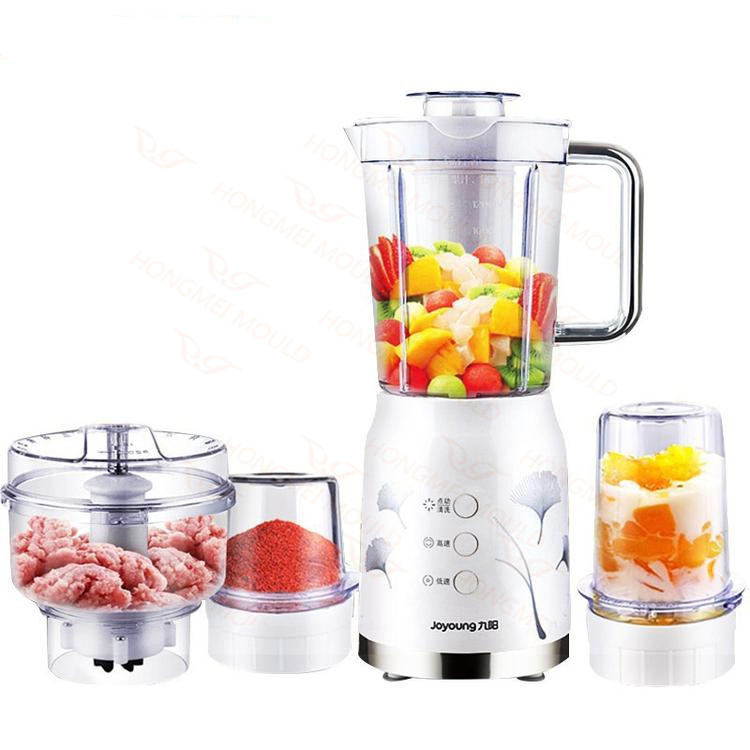

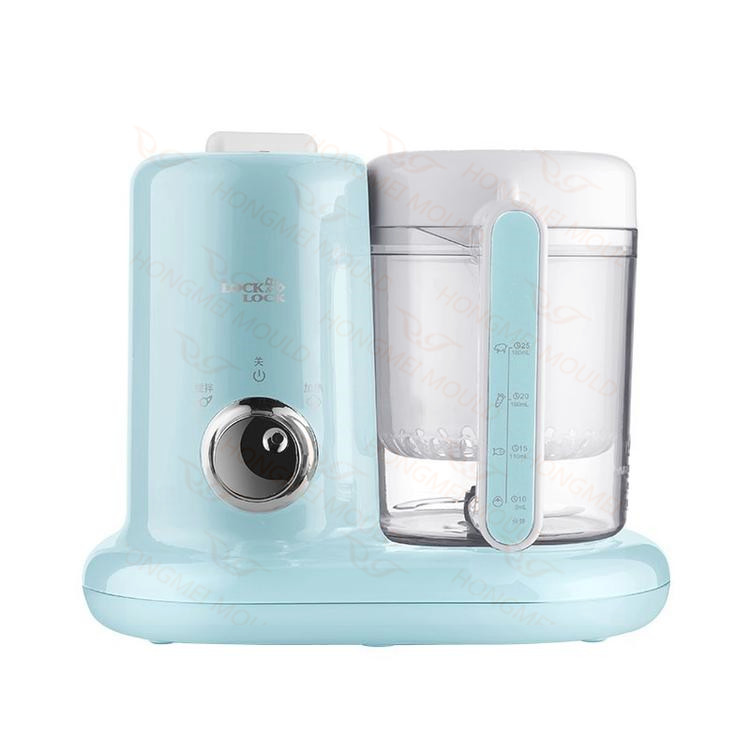

Baby Food Supplement Machine is our daily use home appliance, it help us get fresh juice and puree,it is popular to develop a new type muti function Baby Food Supplement Machine Shell Mould

Send Inquiry

Product Description

Baby Food Supplement Machine Shell Mould Basic Information


Steel: P20

Mold Base: C60

Runner: hot runner

Cavity: Single cavities

Material: ABS

Ejector System: Ejector pin

Delivery Time:45 days

Packing: Wooden case



ABS Raw Material

Usually, Baby Food Supplement Machine Shell Mould we choose ABS raw material.

ABS resin is one of the five synthetic bai resin. Its DU shock resistance, ZHI heat resistance, low temperature resistance, chemical resistance, pharmaceutical resistance and electrical properties are excellent.

Also has easy processing, product size stability, good surface gloss and other characteristics, easy to paint, coloring, can also be sprayed on the surface of metal, electroplating, welding, hot pressing and bonding, and other secondary processing.

Widely used in machinery, automotive, electronic appliances, instrumentation, textiles and construction and other industrial fields, is a widely used thermoplastic engineering plastics.


Ejector Pins Marks

Marks left by ejector pins. Ejector pins are long pins that are used in the Baby Food Supplement Machine Shell Mould to push the final molded product out of the mold These marks can not be removed due to process of injection molding.

How ejector pins works

Below animation will show you how the ejector pins works in a plastic mold.


Cavity and Core Insert Advantage

1. Reduce the mould cost which steel expensive

2. Processing requirements

3.Easy for mould assemble, disassemble and maintain


Annual Output

One shot cycle time: 25s

According to cycle time and worktime each day, we could calculate annual output.


Optimize Mould Shape and Size of The Gate

When injection Baby Food Supplement Machine Shell Mould, injection parts of the large part of the local area solidified first, the pressure value is very low, not conducive to the smooth maintenance of pressure.

Gate for Ф 3 mm round when filling deficiencies, the solidified layer distribution big shortcoming.

Gate is changed to 8 x 1.5 mm or off for Ф 2 mm hole, little solidified layer distribution, can be thought of as satisfactory.

When the sprue length was expanded to 10mm, that is, when the sprue was taken as a rectangle of 10×1.5mm, the solidified layer changed little and the result was satisfactory. However, compared with the 8×1.5mm scheme, the filling effect and the distribution of solidified layer were not much improved.

After comprehensive consideration of the injection molding effect and the convenience of processing, assembly and modification, the injection gate was finally changed to a rectangular hole of 8×1.5mm.


Moulding Process Machines

CNC----------CARVED MACHINE---------Wire-electrode cutting machine -----------Electrical Discharge Machining---------Deep hole drilling machine----------injection machine.

How to pack the mould

1.Check Baby Food Supplement Machine Shell Mould  component

2.Cleaning mould cavity/core and spread slushing oil on the mould

3.Cleaning mould surface and spread slushing oil on the mould surface

4.Put into the wooden case

After-sale service

1).DuringBaby Food Supplement Machine Shell Mould,every week or everyday (if customer want ),we will offer update mould picture or video to customer .

2).When mould test, we will send video and photos to customers.
3).Before Mould delivery, packing video and photos(wooden case, painted with anti-rust) will be both offered for customers.
4).If  mould stay in our factory to production ,life warranty.

One year warranty after mould exported. During warranty, all maintenances are free of charge.


FAQ

1.What is your Hongmei of business?
A.Plastic Baby Food Supplement Machine Shell Mould manufacture
B. Medium and large plastic mold manufacture
C. Injection molding
D. professional designing and making
E. R&D service

2. How about the tolerance?
Mold tolerance is 0.005 mm, Product tolerance is 0.02 mm.

3. What steel do you usually use ?
We usually use steel of P20, P20H, H-13, NAK80, 1.2311, 1.2711,1.2344,1.2510,1.2083,1.2316 and so on.

4.What standard components do you usually use?

We use standard components from LKM, DAIDO, HASCO, DME. (Hot Runner: MOLD MASTER,HUSKY,DME,HASCO,INCOE,THERMOPLAY,YUDO.)

5.What do you need for quotation?
We need 2D part drawing & 3D drawing, and specific mold or part requirements.
2D File Format dwg /dxf /pdf/jpg ,3D Model Format step /x_t /igs /prt

6.How about your mold payment terms?
Mold payment terms:40%-30%-30%.The first payment is when you sign the order,you should pay us 40% of the total value;the second payment is when you receive our sample product,you should pay us 30% of the total value;the last payment is when we deliver the mold for you,you should pay off the balance payment,30% of the total value.

7.How about your part payment terms?
Part payment terms:50%-50%.The first payment is when you sign the order,you should pay us 50% of the total value to purchase the material;The last payment is when we deliver the part for you,you should pay off the balance payment,50% of the total value.

8.What’s your after sales?
After sales:Our customer’s mold drawings and the whole data will be kept in database for 5 years at least.so that when you need our technical support or service,we can be easy and possible to serve you and your customers.
