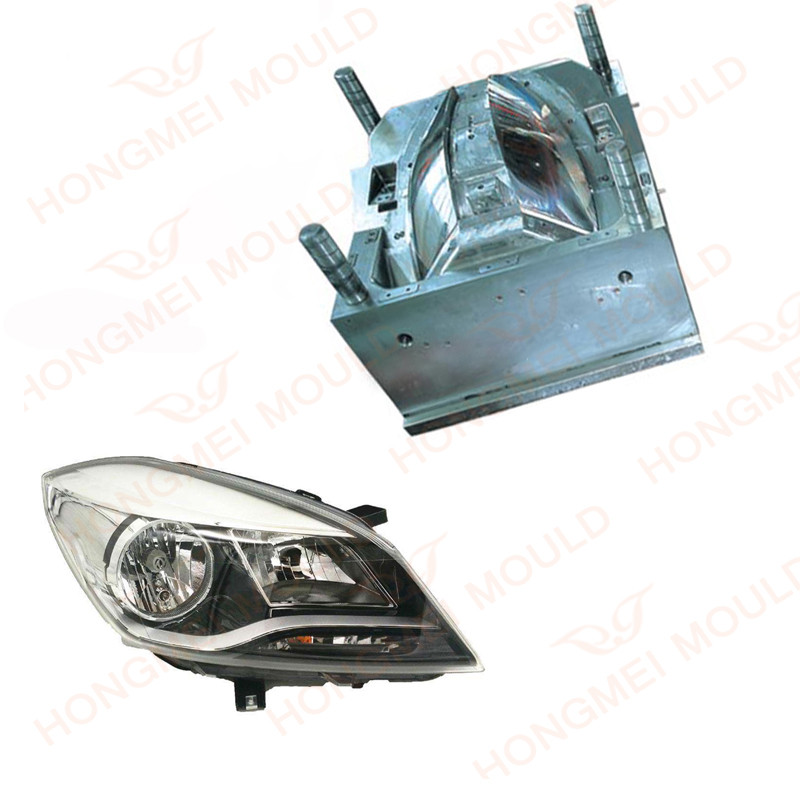

  • Auto Car Headlight Shell Mould - 0 Auto Car Headlight Shell Mould - 0

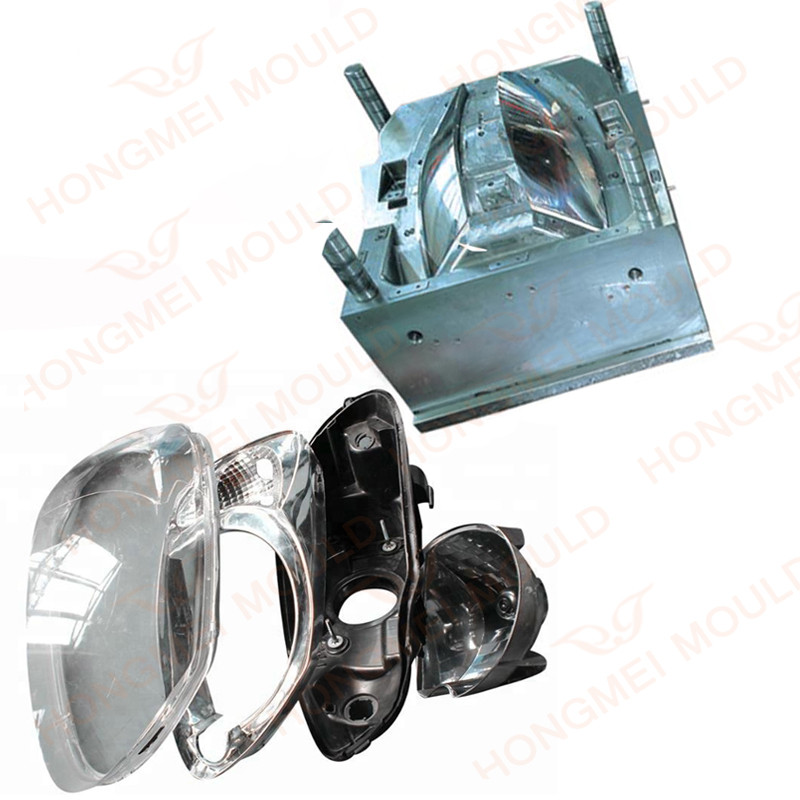

  • Auto Car Headlight Shell Mould - 1 Auto Car Headlight Shell Mould - 1

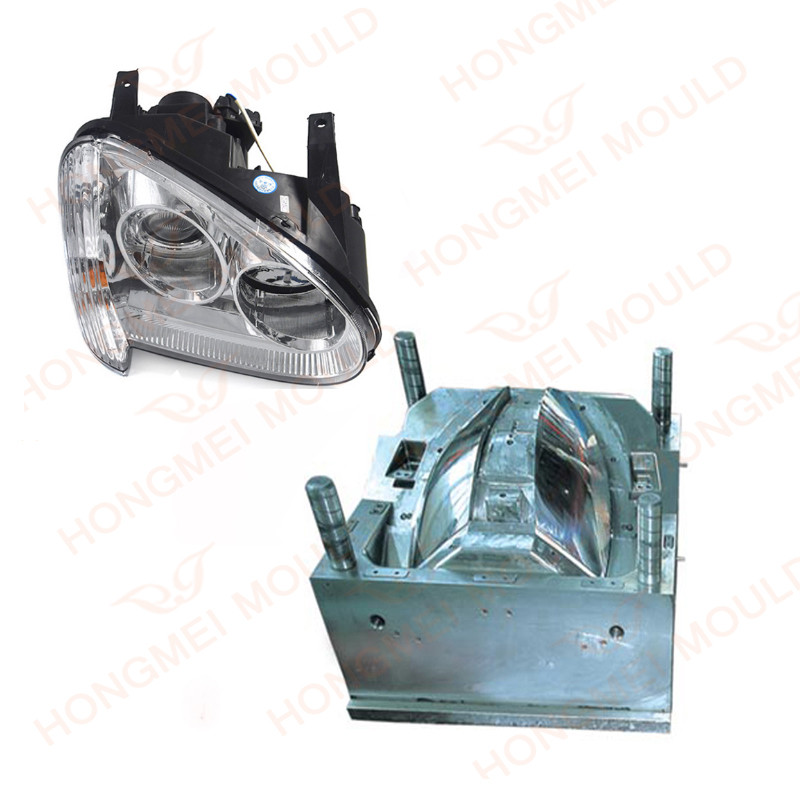

  • Auto Car Headlight Shell Mould - 2 Auto Car Headlight Shell Mould - 2

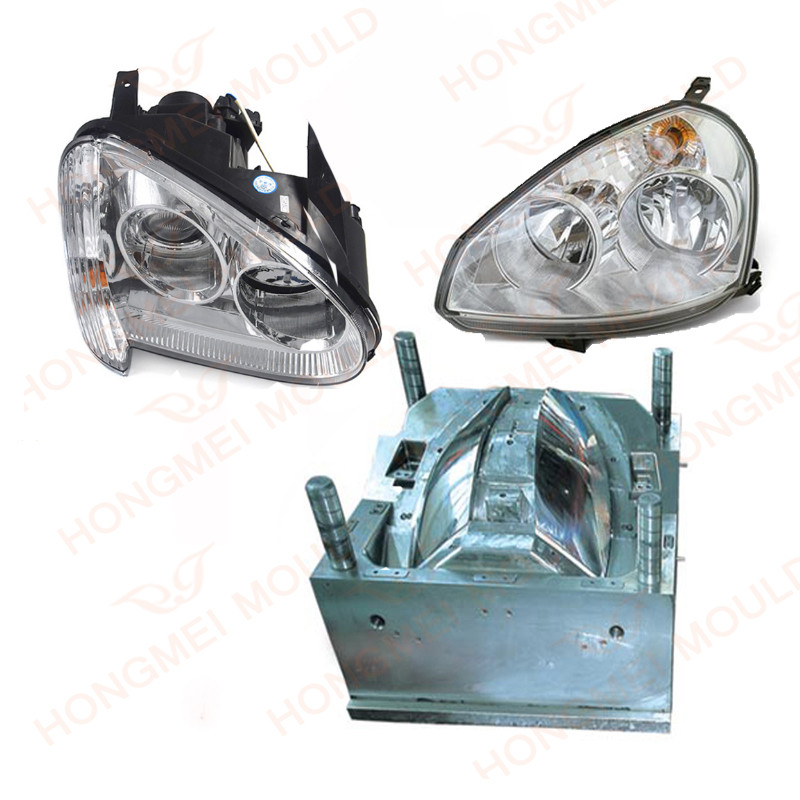

  • Auto Car Headlight Shell Mould - 3 Auto Car Headlight Shell Mould - 3

Auto Car Headlight Shell Mould

Auto Car Headlight Shell Mould is one of our main plastic injection moulds, includes single color,bi-color,triple color Head Lamp mould, high quality Head Lamp products Mould in best price from certified Chinese Plastic auto light Mould manufacturer

Send Inquiry

Product Description

Auto Car Headlight Shell Mould

Hongmei Mould CO.,LTD.,Taizhou,automotive lamp mold,OEM automotive lamp mold,Automotive headlamp mold,Automotive taillamp mold,Fog lamp mold,Day running light mold,Light guide bar mold,Lense mold,Two color rotation mold.

Mould Basic Information

Mould cavity: 1+1

Hot runner: 4 drops with “HOTSET” heating coils, separted temperaturer controller

Mould cavity steel: DIN 1.2738

Mould core steel: DIN 1.2312

Mould slider insert: DIN 1.2738 with Nitriding

Core insert activation: 4 Hydraulic Cylinders

Plastic material: ABS

Cycle time: 40 Secs

Delivery time: 50 days

Any other requirement you can discuss with us.


Ejector system in Auto Car Headlight Shell Mould



1. Basic construction of injection mould

*Return pin: It always pushes ejector system return with spring force.

*Ejector stopper: It prevents impacted between core plate and ejector plate.

*Stop pin: A stopper installed to keep an ejector plate horizontal or prevent the ejector plate from retreating too far and damaging a core adaptor plate.

*Ejector pin: It will push samples out of the Auto Car Headlight Shell Mould.

*Ejector plate: Use to assemble ejector pin, return pin, ejector stopper. There are two ejector plates in the injection molding.

*Sprue lock pin: When mold opening, runner will stick in sprue lock pin.

*Spacer block: It will create distance between bottom plate and core plate. This distance use to assemble ejector system.

*Ejector guide pin: guide for sliding of an ejector plate.

*Ejector bolts: To tie up two ejector plate.

*Sleeve ejector system.  It will push samples out of the Auto Car Headlight Shell Mould.


Mould Developing Procedure



Quotation: We need your require clearly

Negotiation: Material, cavity, price, delivery time, payment term, etc.

Order: According your own design or choice our design

DFMEA: Deign failure mold & Effect analysis to reduce risk

Mold design:  2D/3D drawing

Cutting Tooling Notice: After customer approve the mould design will start making Auto Car Headlight Shell Mould

Weekly Report: We will update the mold schedule every week

Sample Confirm: Send you sample for conform it, if not satisfied by customer. We modify mould.

Delivery Mold: Delivery mould after customer approve sample and arrange shipment


Our Services


1. We provide Auto Car Headlight Shell Mould, OEM is available "according to the customers' drawings (material can be done according to customer's requirement).


2. We improve the finished product, customers can also according to the mold production of finished products.


3. We provide one-stop service, from design, production, service, etc.


4. If you have any request can contact us.
