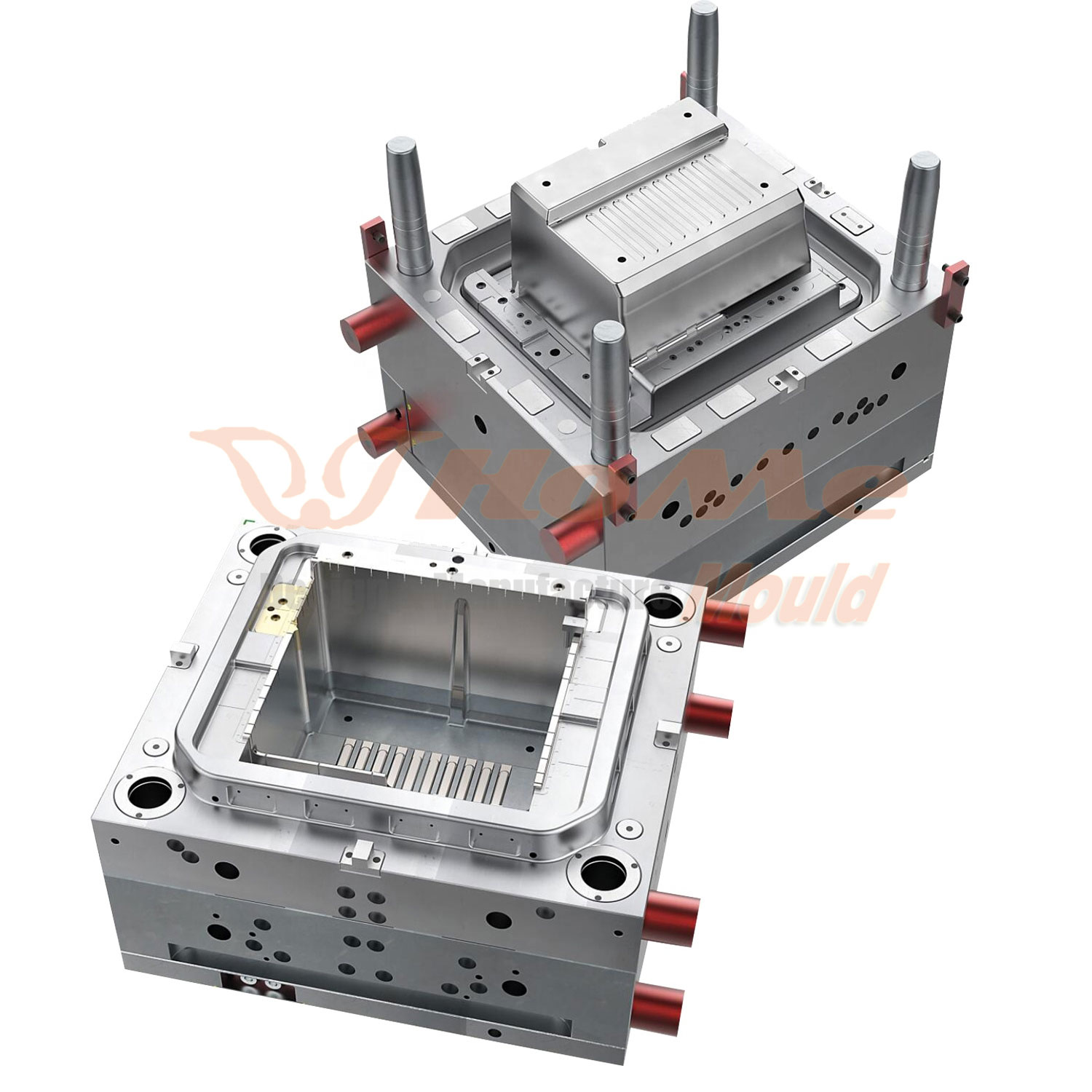

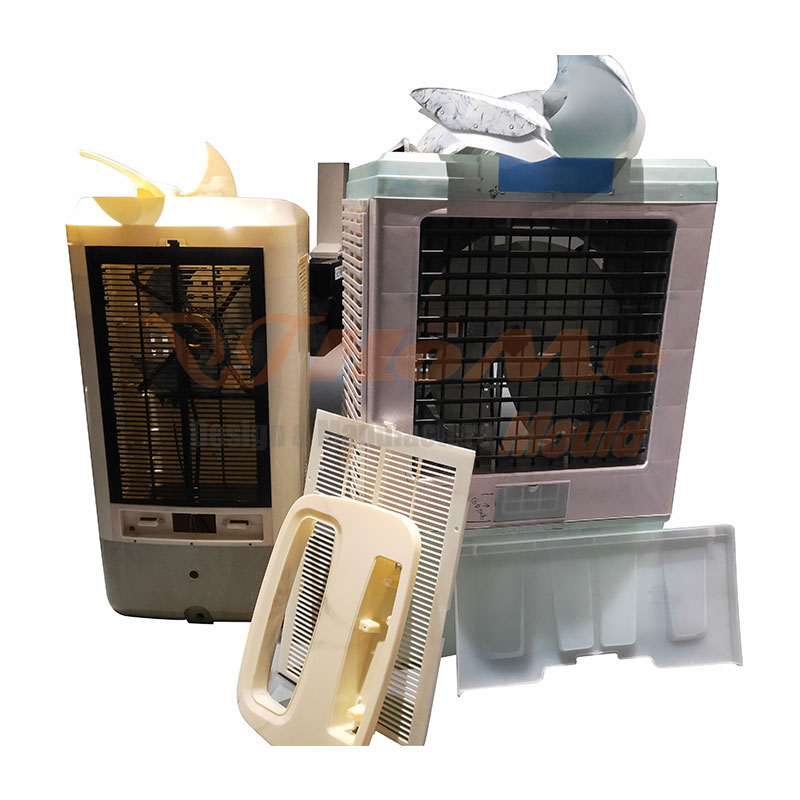

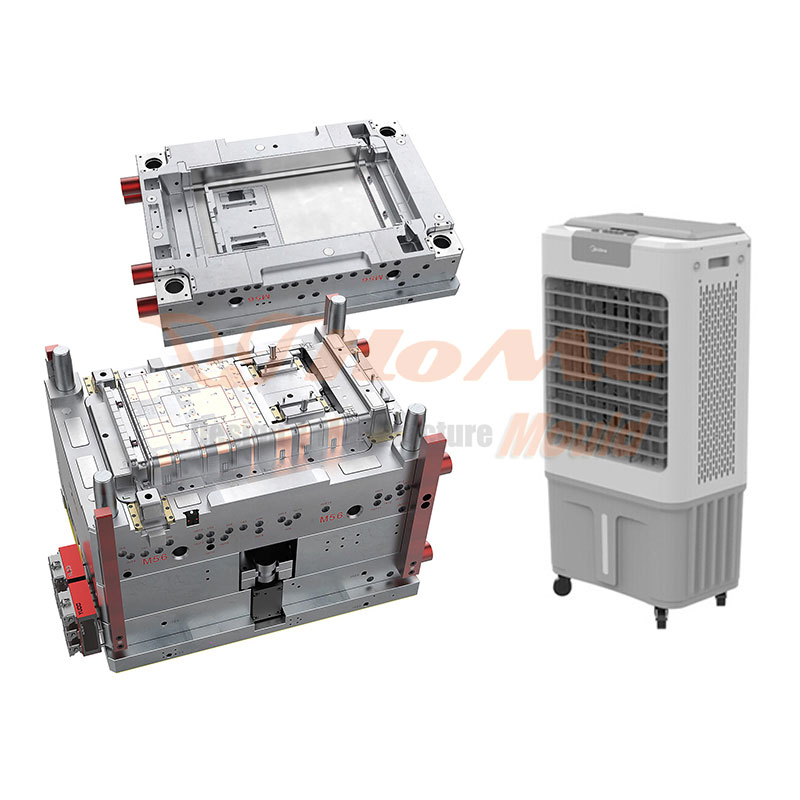

Air Cooler Shell Mold
Air Cooler Injection Mold Discription
Product material: PP
Core&Cavity Steel: 2738
Steel hardness: HRC34-38
Mould Standard: DME
Cavity Number: 1
Injection System: Cold runner
Ejector System: Stripper Plate, Ejector Pin
Cycle Time: 35 to 80S
Tooling lead time: 60days
How Can you Check the Air Cooler Shell Mold Quality?
Quality creates value, we know that reliable quality can win the trust of customers. Hongmei Quality Assurance provides customized testing services to meet the specific requirements of each customer. The quality of our work is closely monitored and maintained throughout the manufacturing and production process with our ability to measure steel tool parts and ultimately plastic parts in depth. All tools and mould parts are fully qualified by our QA staff using state-of-the-art testing equipment. Inspection reports are available in a variety of formats that can be customized for each unique project.
Hongmei Mold attaches great importance to the quality control of injection mold in different production processes:
1. Product and mold design inspection
Our designs or the designs provided by our customers are always analyzed in depth to check the feasibility of the molding process, the mold structure and the mobility feasibility of all relevant plastic parts etc. This helps avoid late mold modifications and other unnecessary mold repair work that may be due to product design errors. We believe that if we spend more time in the product and mold design stage, we can shorten the mold manufacturing time.
2. Mold steel inspection
Air Cooler Shell Mold steel is purchased from standard vendors and selected according to specific conditions and customer requirements.
If your product production quantity is high, it is recommended to use H13(ordinary mold cavity/core, heat treatment HRC43-52), S136(corrosion resistance high mirror finish, heat treatment HRC43-52), 718S(high mirror finish, heat treatment HRC43-52), NAK80(high mirror finish, Pre-hardening HRC38-42), NAK55(high mirror finish, heat treatment HRC43-52), heat treatment HRC43-52), 2316(corrosion resistance high mirror finish, heat treatment HRC43-52), 2738H(high mirror finish, pre-hardening HRC30-33), SKD61(for precision die, Heat treatment HRC45-58). If mold demand is not high, it is recommended to use 2311/P20H(normal cavity/core, pre-hardened HRC28-33), 718H(well polished, pre-hardened HRC33-38)
3. Inspection of mold standard spare parts
All spare parts, Air Cooler Shell Mold to buy regular brand. As for spare parts, if the customer needs, we will protect all drawings and provide some spare parts on the quotation. For standard spare parts, you can ask us to help you buy and send to you, ordinary spare parts can also be purchased from your market.
4. Inspection of machining process
Hongmei mould will provide a weekly report every week, with pictures or videos, so that customers clearly know the progress. At each machining stage, our project manager will check all dimensions and machining condition, if there is any fault can be corrected quickly. Use the most advanced equipment to process molds, to achieve high precision, high quality.
5. Mold test and inspection
Our mold trials are carried out under the supervision of experienced technicians, who strive to adjust the molding machine parameters and produce qualified samples. We also encourage our customers to visit the trial to meet their requirements.
Coordinate measuring machine (CMM), tool maker microscope, height gauge, caliper, pin gauge, micrometer, etc.
